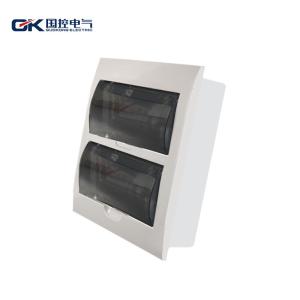

Metal Base Lighting Distribution Box Plastic Cover For Communication And Joint

Brand Name : QK

Model Number : PZ30 30#

Certification : RoHS, CE, UL,CCC,ISO9001

Place of Origin : China

MOQ : 1 Piece

Price : Negotiation

Payment Terms : T/T,L/C,Western Union

Supply Ability : 1000 Pieces/month

Delivery Time : 5-8 work days

Packaging Details : Regular export packing and can accept customized

Material : plastic,Panel made of iron

Protection Level : IP66

Product Name : Merlin distribution box

Application : Can be used at home, hotel,office building and any other places

Lock : Available On Request

Feature : OEM

Contact Now

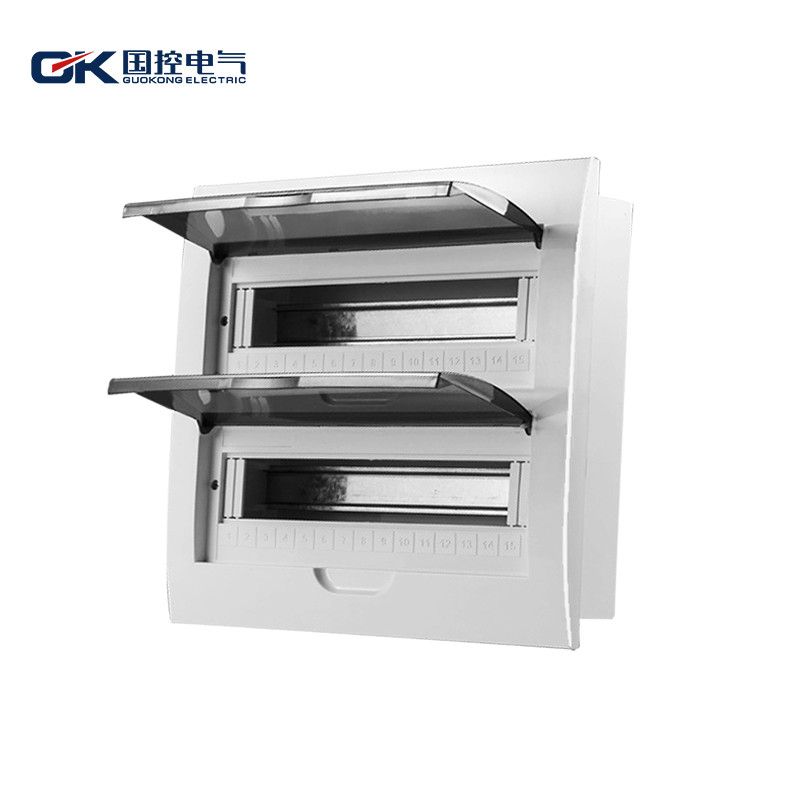

PZ30 30 Way Plastic Power Lighting Distribution Box

Distribution Box

Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)

Plastic distribution box, brown cover, surface mount and flush mount avaliable

Specification:

1. Fashionable design
2. Easy to open:can easily open the cover and easy installation.
3. Convenient installation: When install the Circuit breaker, can put the din rail support panel hung outside the flush boxes, not limit to the narrow space, make the installation more easy.
4. surface mounting type
6. Different ways 4-36 are available for choice.

Specifications

Merlin Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)
1.easy installation
2.Plast

Characteristic

Product name	Distribution box
Material	Sheet Steel
OEM	Offered
Package	1 Piece Per Carton
Certification	CE,CCC,ROHS,TUS
Paint Finish	Epoxy Polyester Coating
Lock	Available On Request
Thckness	1.0mm
Color	Ral7035
Accessories	Wall Mount Brackets To Be Offered Seperately

If you need specified product,please consult us.

12 way eletrical power M5 series industrial distribution box

Standard	Over Dimdension
Standard	Height(mm)	Width(mm)	Depth(mm)	Thickness(mm)
6#	200	183	85	1.0
9#	200	238	85	1.0
12#	200	293	85	1.0
15#	200	347	85	1.0
18#	200	400	85	1.0
21#	200	455	85	1.0
24#	382	293	85	1.0
30#	410	347	85	1.0
36#	412	400	85	1.0
